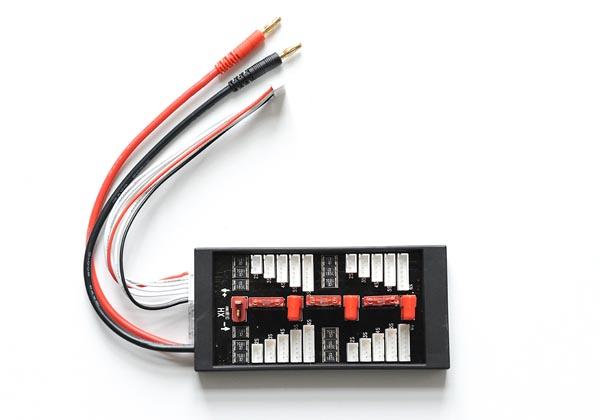

PARALLEL CHARGING BOARD FOR 6 PACKS (Deans/T Connectors)

STEVE PLEASE UPDATE DESCRIPTION

Charge multiple LiPo batteries (with Dean's plugs) at the same time!

Charge two to six (2~6S) LiPo Batteries (with Dean's plugs) with same capacity & cell count simultaneously with this parallel charging board.

That means you can charge up to 6 lipo batteries at the same time with a standard charger! (The batteries you plug into the board must be matched, meaning the same mAh number, "C" rating, and number of cells on each battery)

NOTE- you can use adapters on your battery plugs to match them to the Dean's connectors on the board. Also, BE CAREFUL TO PLUG THE BALANCE PLUGS IN THE RIGHT WAY- plugging one in upside down will burn out the balance wires on the battery and possibly on the board.

Spec.
Cell: 2~6S
Voltage: 0~22.2VDC
Max current: 30A
Battery: 6 packs same capacity & cell count
Connector: T Connector/jst-xh
