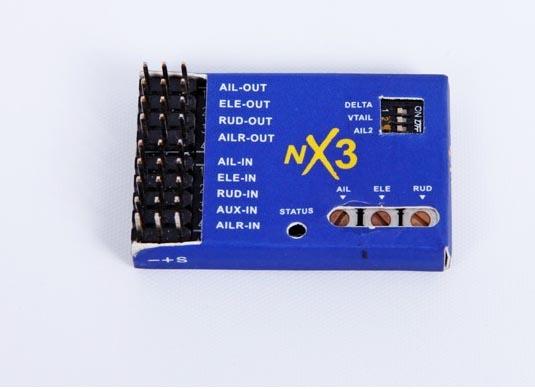

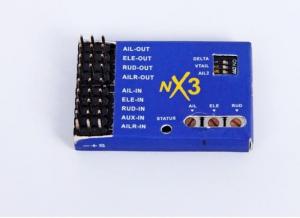

NX3 3-Axis Aircraft Gyro

Features:

• Model types: Single Aileron, Dual Ailerons (Flaperons), Delta-Wing and V-Tail.

•  Flight modes:
     a. Standard/Rate Mode: Gyro will make the corrections for stabilization.

     b. Hold Mode: Gyro will be standing by for calibration.

     c. Gyro ‘Off’ Mode: Gyro is disengaged and total control is given to the transmitter.

• Gain Control Methods: ‘Master Gain’ for the radio and ‘Independent Axis Gain’ from the Variable resistor on the NX3 board. Gain control options can be configured to a comfortable or more sensitive sense of control depending on your preference.

Specifications:

• Voltage Range：5-6V DC. (Do not use dry cell batteries!)

• Dimensions：40mm x 25mm.

• Weight：6.5g.

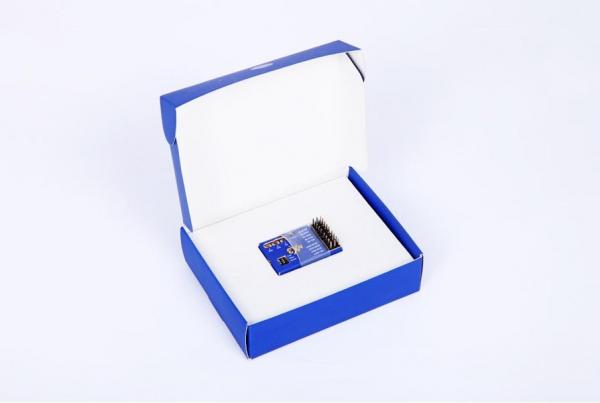

Package Includes:

• NX3 3-Axis Gyro

• NX3 Manual

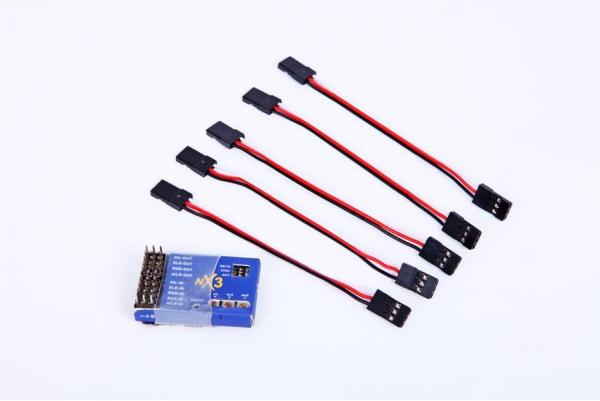

• Servo Wire Set (5 pcs)

• Double-sided Mounting Tape
